Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine

  • Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine
  • Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine
  • Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine
Lugar de origen CN
Nombre de la marca MENSION
Certificación CE RoHS
Número de modelo MS-P16
Cantidad de orden mínima 1 juego
Precio Contact Us
Detalles de empaquetado Una madera contrachapada para un sistema
Tiempo de entrega 2 - 7 días laborables
Condiciones de pago LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente 1000 juegos por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Rango 14 - 45m m Tamaño de la manguera 1/4 - 1inch
Conjunto de muestras 7 Color azul
Max. La apertura 20mm Fuerza de engasta 150T
Presión del sistema 31.5MPA Fuerza bomba manual
Tamaño 400*320*300m m Peso 32 kg
Nombre del producto Arrugador de la manguera P16
Resaltar

Manual Hydraulic Hose Crimping Machine

,

150T Hose Crimper

,

Portable P16 Hose Crimper
Deja un mensaje
Descripción de producto

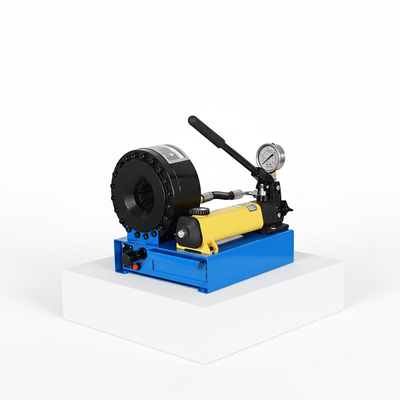

P16HP Manual Hydraulic Hose Crimping Machine
MS-P16 is a manually operated hose crimping machine designed for portability and reliability. With its lightweight construction, it can be easily transported to any location requiring hose assembly crimping, making it the ideal solution for job sites without electricity supply.
Key Advantages
  • Famous "ENERPAC" hydraulic valve for high stability and reliability
  • Simple design that's easy for novice operators
  • Substantial crimping force capable of handling up to 4 steel wire hoses
  • High productivity with efficient operation
  • Low maintenance cost for long-term value
Technical Specifications
Model P16 Hose Crimper Machine
Crimping Range 14 - 47 mm
Crimping Force 150 Tons
Hose Size 1/4 - 1 inch
Maximum Opening 20 mm
Die Sets 7
Die Set Type P16
System Pressure 31.5 MPa
Accuracy 0.01 mm
Length 400 mm
Width 320 mm
Height 300 mm
Weight 32 kg
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 0
P16 Crimper Die Sets
Die Number Crimping Range Length
6* 6 ... 8 mm 55
8* 8 ... 10 mm 55
10* 10 ... 12 mm 55
12* 12 ... 14 mm 55
14 14 ... 16 mm 55
16 16 ... 19 mm 55
19 19 ... 23 mm 55
23 23 ... 27 mm 55
27 27 ... 31 mm 55
31 31 ... 35 mm 65
35 35 ... 41 mm 65
Important Notes
  • "*" indicates non-standard die sets
  • Customized die sets are available upon request
  • Maximum opening refers to the stroke between fully closed and fully opened die sets
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control System
  • Electric Crimper Conversion
Product Features

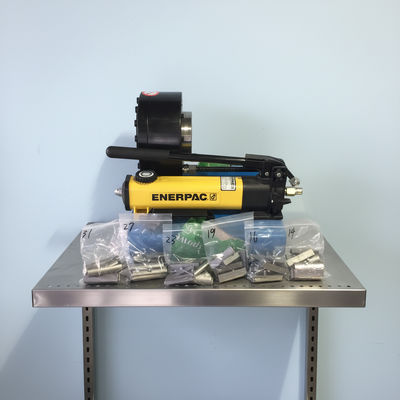

Famous "ENERPAC" hydraulic oil pump for reliable performance
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 1
Precision die sets for hydraulic hose assembly pressing
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 2
Secure packaging with plywood case, fumigation-free
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 3
Crimping Samples
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 4
