24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine

  • 24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine
  • 24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine
  • 24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine
  • 24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine
Lugar de origen CN
Nombre de la marca MENSION
Certificación CE RoHS
Número de modelo Se trata de un sistema de control de las emisiones de gases de escape.
Cantidad de orden mínima 1 juego
Precio Contact Us
Detalles de empaquetado Una madera contrachapada para un sistema
Tiempo de entrega 2 - 7 días laborables
Condiciones de pago LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente 1000 juegos por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Rango 14 - 87 mm Tamaño de la manguera 1/4 - 2,5 pulgadas
Conjunto de muestras 13 Color azul
Max. La apertura 31mm Fuerza de engasta 280t
Control EM Fuerza 2,2 KW
Tamaño 630*540*420m m Peso 150 kilos
Resaltar

24V Hydraulic Hose Crimping Machine

,

280T Crimping Force Hose Crimper

,

Mobile Hydraulic Pipe Swaging Machine
Deja un mensaje
Descripción de producto

24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 0

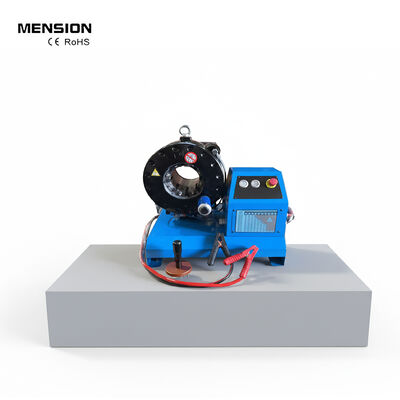

24V Mobile Hydraulic Hose Crimping Machine - MS-P32CS

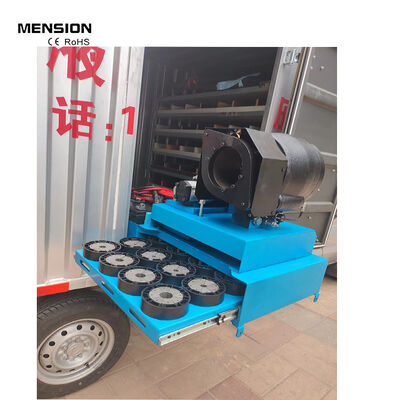

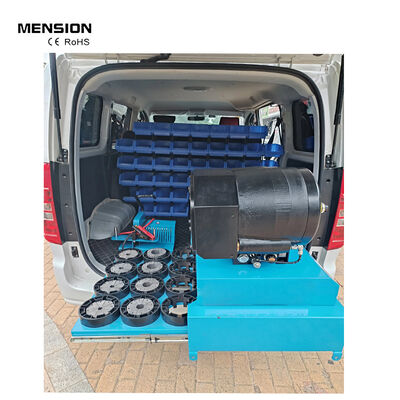

The MS-P32CS cable crimping machine is a specialized 24V hydraulic hose crimper powered by automotive electrical systems, making it the ideal solution for on-site crimping operations with mobile service vehicles.

Key Features
  • Mobile operation capability for on-site crimping with service vehicles
  • High-quality components with extensive crimping range
  • Rapid crimping and opening cycles for enhanced productivity
Technical Specifications
Model MS-P32CS Hydraulic Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 280 (T)
Hose Size 1/4 - 2.5 (inch)
Max. Opening 31 (mm)
Die Sets 13
Die Set Type P32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 24 (V)
Motor Power 2.2 (KW)
Length 630 (mm)
Width 540 (mm)
Height 420 (mm)
Weight 150 (KG) without oil
24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 1
P32 Crimping Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 76mm 110
74* 74 - 80mm 110
78* 78 - 87mm 110
Notes:
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- 12V voltage option is available
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
Double Bevel Crimping Die Base
One-piece oil cylinder with double bevel die base design provides exceptional accuracy and crimping force for reliable performance.
24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 2
High Hardness Die Sets
13 specialized die sets accommodate hose sizes from 1/4 to 2 inches, engineered for high-pressure applications with superior durability.
24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 3
Precision Micrometer Control
High-precision micrometer with excellent stability enables easy diameter setting and features a large, readable scale for accurate adjustments.
24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 4
Premium Raw Steel Materials
24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 5
Applications
This versatile crimping machine is suitable for hydraulic high-pressure oil rubber hose assembly manufacturing, low-pressure water or air pipe pressing, steel tube and iron tube swaging, wire rope and cable pressing, and lock device fabrication.
24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 6 24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly Hose Crimping Machine 7
